AVSIL Silica Sleeve / AVSIL Silica Tape / AVSIL Silica Rope / AVSIL Silica Fabric
S-H-1/4 0.25" .2" - .375"
Nominal
Part Number Inside Diameter Range
Part Number Inside Diameter Range
S-H-1/2 0.5" .4" - .750"
S-H-1 1.0" .75" - 1.25"
S-H-1-1/2 1.5" 1.25" - 1.75"
S-H-2 2" 1.75" - 2.5"
S-H-3 3" 2.5" - 3.5"
S-H-4 4" 3.5" - 4.5"
S-H-6 6" 5.5" - 6.5"

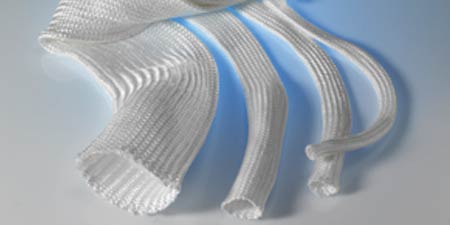

AVSIL Silica Sleeve
- Standard roll length is 50 feet. Other lengths may be available
- Standard roll length is 50 feet. Other lengths may be available
S-H-5 5" 4.5" - 5.5"
AVSIL Silica Tape
- Standard roll length is 50 feet. Other lengths may be available
- Standard roll length is 50 feet. Other lengths may be available
Part Number NominalWidth Thickness Roll Length
WT36CH-1/2 0.50" .062" 100 feet
WT-19-1 1/2 0.50" .015" 100 feet
WT36CH-1 1.00" .062" 100 feet
WT36CH-1-1/2 1.50" .062" 100 feet
WT36CH-2 2.00" .062" 100 feet
WT36CH-3 3.00" .062" 100 feet
WT36CH-4 4.00" .062" 100 feet
WT36CH-6 6.00" .062" 100 feet
WT65CH-1/2 0.50" .125" 50 feet
WT65CH-1 1.00" .125" 50 feet
WT65CH-1-1/2 1.50" .125" 50 feet
WT65CH-2 2.00" .125" 50 feet
WT65CH-3 3.00" .125" 50 feet
WT65CH-4 4.00" .125" 50 feet
WT65CH-6 6.00" .125" 50 feet
WT180-1 1.00" .250" 50 feet
WT180-1 2.00" .250" 50 feet
WT180-1 3.00" .250" 50 feet
AVSIL Silica Braided Rope
- Standard roll length is 100 feet up to and including 3/4" size.
- Other lengths may be available
- Standard roll length is 100 feet up to and including 3/4" size.
- Other lengths may be available
Part Number O.D. Roll Length
BR-H-1/4 0.250" 100 feet
BR-H-3/8 0.375" 100 feet
BR-H-1/2 0.500" 100 feet
BR-H-5/8 0.625" 100 feet
BR-H-3/4 0.750" 100 feet
BR-H-1 1.000" 75 feet
BR-1-3/8 1.375" 45 feet
BR-2 2.000" 45 feet
AVSIL Silica Twisted Rope
- Standard roll length is 100 feet up to and including 3/4" size.
- Other lengths may be available
- Standard roll length is 100 feet up to and including 3/4" size.
- Other lengths may be available
Part Number O.D. Roll Length
TR-H-1/4 0.250" 100 feet
TR-H-3/8 0.375" 100 feet
TR-H-1/2 0.500" 100 feet
TR-H-5/8 0.625" 100 feet
TR-H-3/4 0.750" 100 feet
TR-H-1 1.000" 75 feet
AVSIL Silica Fabric - Standard Grade - FM Class 4950 Approved
- Standard roll length is 150 feet.
- Other lengths may be available
- Standard roll length is 150 feet.
- Other lengths may be available
Part Number Thickness Weight Widths Roll Length
84CH 0.030" 18 oz/sq yd 36, 60 50 yards
124CH 0.039" 26 oz/sq yd 36, 60 50 yards
168CH 0.049" 32 oz/sq yd 36 50 yards
188CH 0.054" 36 oz/sq yd 36 50 yards
AVSIL Silica Fabric - Abrasion Resistant
84CSR 0.031" 19 oz/sq yd 36, 60 50 yards
124CSR 0.039" 27 oz/sq yd 36 50 yards
168CSR 0.049" 32 oz/sq yd 36 50 yards
188CSR 0.056" 37 oz/sq yd 36 50 yards
188CH 0.054" 36 oz/sq yd 60 25 yards
188CSR 0.056" 37 oz/sq yd 60 25 yards
